Well Number (Vol)	10 (30 µl)
Gel percentage	4–20%
Comb	10-well
Sample volume, µl	30
Shelf life, months*	12
Gel storage conditions	Store flat at 2–8°C; do not freeze
Recommended sample buffer (Laemmli, dilute 1:1 with sample)	62.5 mM Tris-HCl, pH 6.8, 2% SDS, 25% glycerol, 0.01% bromophenol blue
Recommended running buffer (Tris/glycine/SDS)	25 mM Tris, 192 mM glycine, 0.1% SDS, pH 8.3
Gel dimensions (W x L x thickness), cm	8.6 x 6.7 x 0.1
Cassette dimensions (W x L x thickness), cm	10 x 8 x 0.46
Cassette material	Styrene copolymer
Comb material	Polycarbonate
* From date of manufacture.

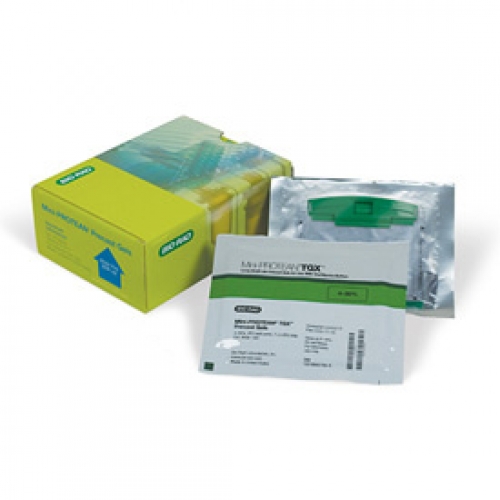

Use these Mini-PROTEAN TGX Precast Protein Gels for separation of polypeptides ~2–400 kD. Long-life TGX (Tris-Glycine eXtended) Gels have a novel formulation and can be used for both standard denaturing protein separations as well as native electrophoresis.

Run up to 4 Mini-PROTEAN TGX Precast Protein Gels in 35 min using the Mini-PROTEAN Tetra Cell.

There is a wide range of Mini-PROTEAN TGX Precast Protein Gels, including other gels with 10 wells, in both single percentages and gradients.

Features and Benefits

• Can be used for denaturing electrophoresis with standard running buffer containing SDS
• Laemmli-like separation in the presence of SDS
• Run time as short as 15 min
• Proteins retain native conformation and activity in the absence SDS
• 12 month shelf life
• Individually packaged

Cassette opening levers (4560000) are sold separately.

Packaging Options

Number of Gels	Catalog Number
10	4561093
10, with 100 μl Dual Color Standards	4561093DC
2	4561093S



Related Products

• 2x Laemmli Sample Buffer (1610737)
• Native Sample Buffer (1610738)
• 10x Tris/Glycine/SDS Running Buffer (1610732)
• 10x Tris/Glycine Running Buffer (1610734)
• Protein Ladders and Standards (Markers) including unstained, prestained and western

Supporting Documents

Mini-PROTEAN TGX Precast Protein Gels Quick Start Guide
Mini-PROTEAN Precast Protein Gels Instruction Manual and Application Guide
